japanese stab binding tutorial: stars

Published by

on

By popular request. Next up, ‘woven’.

An fairly beginner bind and a beginner hole pattern.

**click on an image to enlarge**

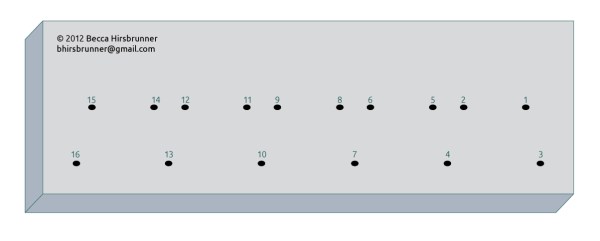

hole pattern
jsb.stars.holes

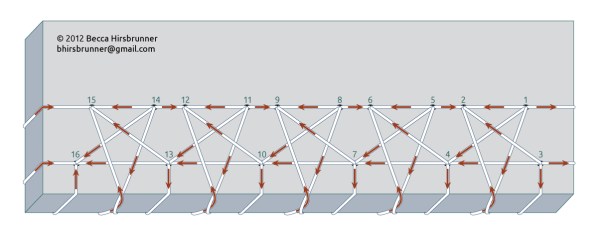

sewing pattern
jsb.stars

EXIT = needle pointed DOWN and ENTER = needle pointed UP
=====
enter 1, (leave a tail but don’t knot it) wrap around right edge, enter 1 again
exit 4
enter 3, wrap around right edge, enter 3 again
wrap around spine, enter 3 again
exit 4
enter 1, wrap around spine at angle to between 1 and 2, enter 1 again
exit 2
enter 3
exit 2, wrap around spine, thread needle under loop from 1, point right, exit 2 again
enter 5
exit 7
enter 4, wrap around spine, enter 4 again
exit 7
enter 5, wrap around spine at angle to between 5 and 6, enter 5 again
exit 6
enter 4
exit 6, wrap around spine, thread needle under loop from 5, point right, exit 6 again
enter 8
exit 10
enter 7, wrap around spine, enter 7 again
exit 10
enter 8, wrap around spine at angle to between 8 and 9, enter 8 again
exit 9
enter 7
exit 9, wrap around spine, thread needle under loop from 8, point right, exit 9 again
enter 11
exit 13
enter 10, wrap around spine, enter 10 again
exit 13
enter 11, wrap around spine at angle to between 11 and 12, enter 11 again
exit 12
enter 10
exit 12, wrap around spine, thread needle under loop from 11, point right, exit 12 again
enter 14
exit 16
enter 13, wrap around spine, enter 13 again
exit 16, wrap around spine, exit 16 again
wrap around left edge, exit 16 again
enter 14, wrap around spine at angle to between 14 and 15, enter 14 again
exit 15
enter 13
exit 15, wrap around spine, thread needle under loop from 14, point right, exit 15 again
wrap around left edge, exit 15 again
enter 14
exit 12
enter 11
exit 9
enter 8
exit 6
enter 5
exit 2, tie off with tail from 1
